Tiered storage for RocketMQ (Technical preview)

RocketMQ tiered storage allows users to offload message data from the local disk to other cheaper and larger storage mediums. So that users can extend the message reserve time at a lower cost. And different topics can flexibly specify different TTL as needed.

This article is a cookbook for RocketMQ tiered storage.

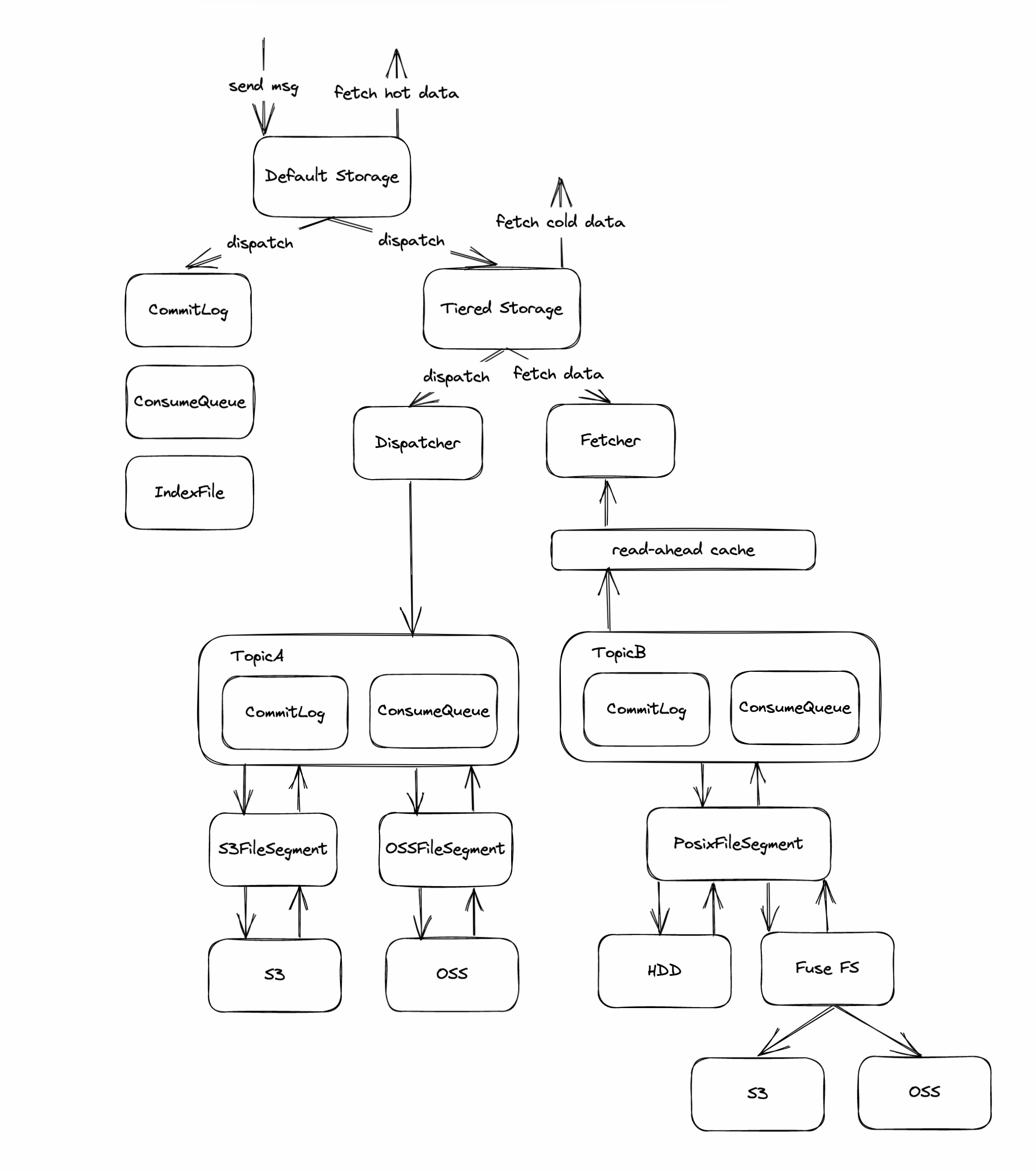

Architecture

Quick start

Use the following steps to easily use tiered storage

1. Change messageStorePlugIn to org.apache.rocketmq.tieredstore.TieredMessageStore in your broker.conf.
2. Configure your backend service provider. change tieredBackendServiceProvider to your storage medium implement. We give a default implement: POSIX provider, and you need to change tieredStoreFilePath to the mount point of storage medium for tiered storage.
3. Start the broker and enjoy!

Configuration

The following are some core configurations, for more details, see TieredMessageStoreConfig

Configuration	Default value	Unit	Function
messageStorePlugIn			Set to org.apache.rocketmq.tieredstore.TieredMessageStore to use tiered storage
tieredMetadataServiceProvider	org.apache.rocketmq.tieredstore.metadata.DefaultMetadataStore		Select your metadata provider
tieredBackendServiceProvider	org.apache.rocketmq.tieredstore.provider.PosixFileSegment		Select your backend service provider
tieredStoreFilePath			Select the directory using for tiered storage, only for POSIX provider.
tieredStorageLevel	NOT_IN_DISK		The options are DISABLE, NOT_IN_DISK, NOT_IN_MEM, FORCE
tieredStoreFileReservedTime	72	hour	Default topic TTL in tiered storage
tieredStoreGroupCommitCount	2500		The number of messages that trigger one batch transfer
tieredStoreGroupCommitSize	33554432	byte	The size of messages that trigger one batch transfer, 32M by default
tieredStoreMaxGroupCommitCount	10000		The maximum number of messages waiting to be transfered per queue
readAheadCacheExpireDuration	1000	millisecond	Read-ahead cache expiration time
readAheadCacheSizeThresholdRate	0.3		The maximum heap space occupied by the read-ahead cache

Metrics

Tiered storage provides some useful metrics, see RIP-46 for details.

Type	Name	Unit
Histogram	rocketmq_tiered_store_api_latency	milliseconds
Histogram	rocketmq_tiered_store_provider_rpc_latency	milliseconds
Histogram	rocketmq_tiered_store_provider_upload_bytes	byte
Histogram	rocketmq_tiered_store_provider_download_bytes	byte
Gauge	rocketmq_tiered_store_dispatch_behind
Gauge	rocketmq_tiered_store_dispatch_latency	byte
Counter	rocketmq_tiered_store_messages_dispatch_total
Counter	rocketmq_tiered_store_messages_out_total
Counter	rocketmq_tiered_store_get_message_fallback_total
Gauge	rocketmq_tiered_store_read_ahead_cache_count
Gauge	rocketmq_tiered_store_read_ahead_cache_bytes	byte
Counter	rocketmq_tiered_store_read_ahead_cache_access_total
Counter	rocketmq_tiered_store_read_ahead_cache_hit_total
Gauge	rocketmq_storage_message_reserve_time	milliseconds

How to contribute

We need community participation to add more backend service providers for tiered storage. PosixFileSegment, the implementation provided by default is just an example. People who want to contribute can follow it to implement their own providers, such as S3FileSegment, OSSFileSegment, and MinIOFileSegment. Here are some guidelines:

1. Extend FileSegment and implement the methods of FileSegmentProvider interface.
2. Record metrics where appropriate. See rocketmq_tiered_store_provider_rpc_latency, rocketmq_tiered_store_provider_upload_bytes, and rocketmq_tiered_store_provider_download_bytes
3. No need to maintain your own cache and avoid polluting the page cache. It is already having the read-ahead cache.
